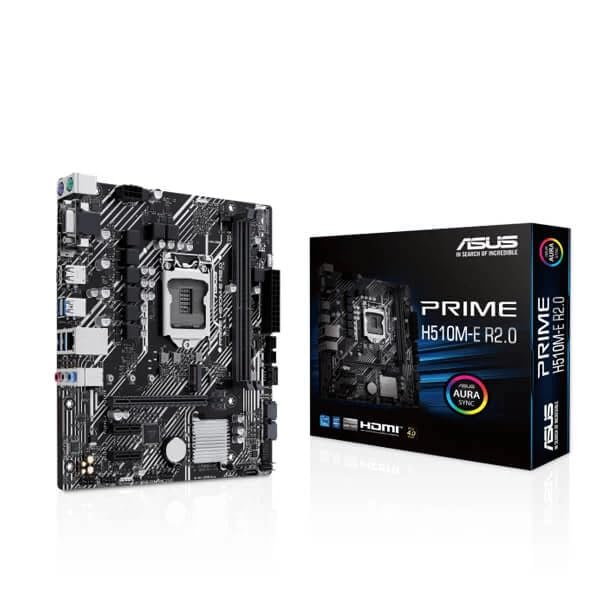

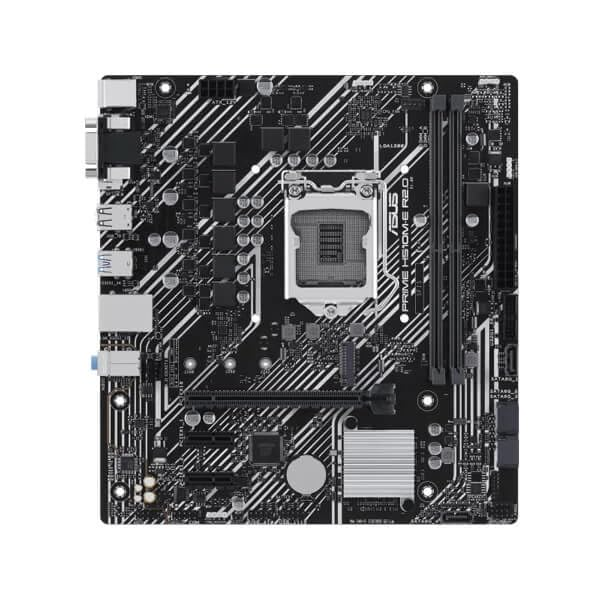

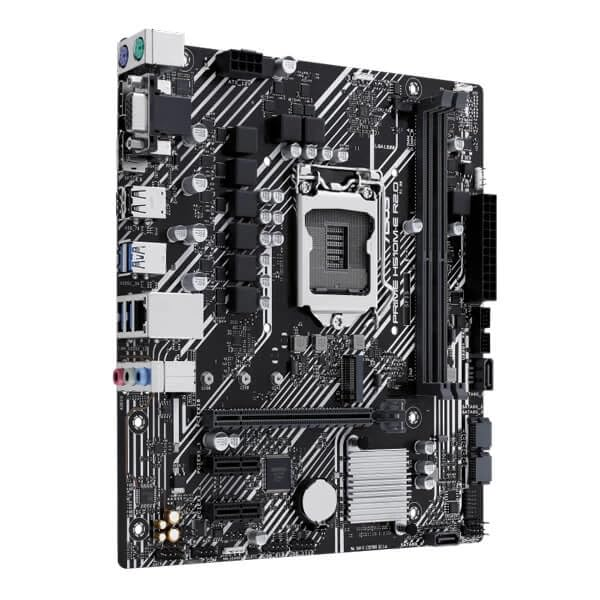

The ASUS Prime H510M-E R2.0 motherboard is a micro ATX platform designed to deliver excellent performance, expandability, and durability for 11th and 10th Gen Intel® processors. This motherboard combines Intel®'s H470 chipset with a host of features, such as PCIe 4.0, fast M.2 storage, comprehensive cooling, and flexible connectivity options, making it a solid choice for both home and office builds.

Key Features:

• Intel® LGA 1200 Socket:
• Supports 11th and 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
• Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 support for enhanced CPU performance.
• Chipset:
• Intel® H470 chipset that delivers great system performance with stability.
• Memory:
• Dual Channel memory architecture with 2 x DIMM slots.
• Supports up to 64GB DDR4 memory at speeds ranging from 2133 MHz to 3200 MHz (OC), depending on the CPU used.
• Intel® Extreme Memory Profile (XMP) support for overclocking.
• Graphics:
• 1 x DisplayPort 1.4 (Supports up to 4096 x 2304 @60Hz).
• 1 x HDMI™ 2.1 (Supports up to 4K@60Hz with Intel® 11th Gen processors, or 4K@30Hz with 10th Gen processors).
• 1 x VGA port for older displays.
• Expansion Slots:
• 1 x PCIe 4.0/3.0 x16 slot (Supports PCIe 4.0 with 11th Gen Intel® CPUs, and PCIe 3.0 with 10th Gen CPUs).
• 2 x PCIe 3.0 x1 slots for additional expansion cards.
• Storage:
• 1 x M.2 slot (Key M) supports PCIe 3.0 x4 and SATA modes for high-speed storage.
• 4 x SATA 6Gb/s ports for traditional storage devices like HDDs and SSDs.
• Connectivity:
• 1 x Realtek 1Gb Ethernet port for fast network connectivity.

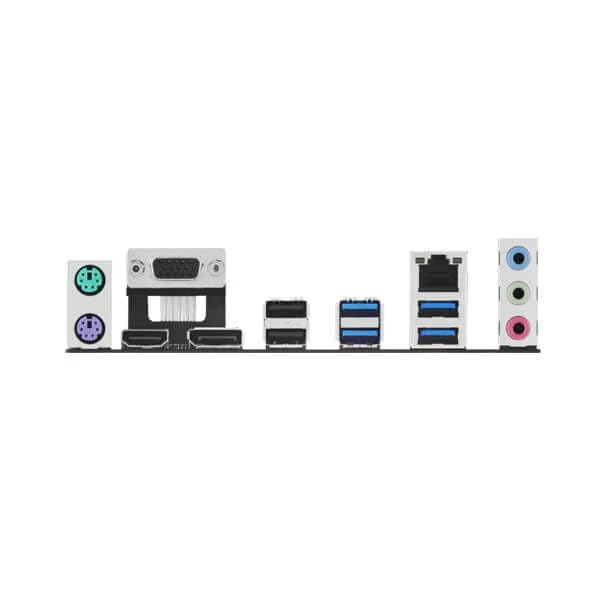

• 6 x USB ports on the rear I/O panel, including 4 x USB 3.2 Gen 1 (5G) and 2 x USB 2.0.
• USB headers for additional front USB ports.
• Audio:
• Realtek 7.1 Surround Sound High Definition Audio CODEC.
• Supports Jack-detection, Multi-streaming, and Front Panel Jack-retasking.
• High-quality audio features such as Audio Shielding, Premium capacitors, and Dedicated audio PCB layers for clear and immersive sound.
• Aura Sync RGB Lighting:
• Addressable Gen 2 RGB headers for adding RGB LED strips or other lighting components.
• Sync lighting with other Aura Sync-compatible devices for a unified look.
• Cooling & Protection:
• PCH Heatsink and Fan Xpert for optimized cooling.
• ASUS 5X Protection III: Includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O for enhanced durability and protection.
• UEFI BIOS:
• Easy-to-use UEFI BIOS interface with features like EZ Flash 3 for easy firmware updates and CrashFree BIOS 3 for recovery.
• Special Features:
• Q-LED Core: For troubleshooting during POST with light indicators.
• Q-DIMM and Q-Slot designs for easy component installation.
• S/PDIF Out Header for high-quality digital audio output.

Specifications:

• Form Factor: mATX (8.9 inches x 8.3 inches)
• Socket Type: Intel® LGA 1200
• Chipset: Intel® H470
• Memory: 2 x DIMM, Up to 64GB DDR4, with speeds up to 3200 MHz (OC)
• Storage:
• 1 x M.2 slot (PCIe 3.0 x4 or SATA)
• 4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 1Gb Ethernet
• USB Ports:
• 4 x USB 3.2 Gen 1 (5G, Type-A)
• 2 x USB 2.0 ports (Type-A)
• Additional USB headers for front I/O expansion
• Audio: Realtek 7.1 Surround Sound High Definition Audio
• Graphics Output:
• 1 x DisplayPort 1.4
• 1 x HDMI™ 2.1
• 1 x VGA port
• Expansion Slots:
• 1 x PCIe 4.0/3.0 x16
• 2 x PCIe 3.0 x1
• Cooling:
• PCH Heatsink and multiple fan headers (CPU and chassis fans).
• RGB Lighting: Addressable Gen 2 RGB headers, Aura Sync compatible.

Ideal Use Case:

The ASUS Prime H510M-E R2.0 motherboard is a great choice for users building a versatile and durable PC for both work and play. It’s perfect for those who want solid performance from Intel’s 10th or 11th Gen processors with high-speed storage, robust audio, and RGB lighting customization. Whether for a business workstation or a gaming setup, this motherboard offers stability and flexibility for diverse use cases.

Warranty:

• 3-year warranty for peace of mind.
